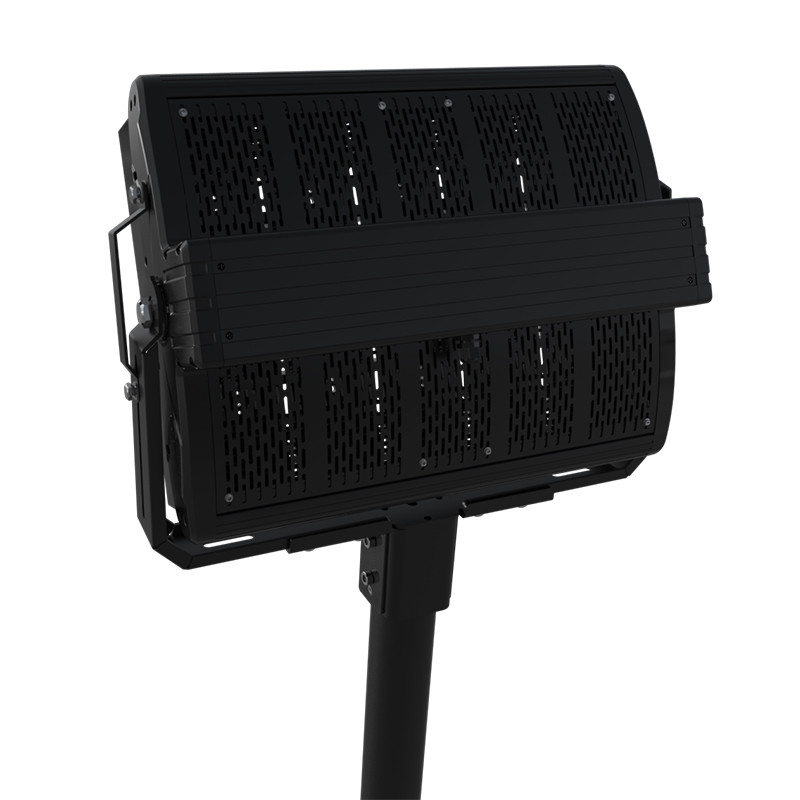

Opsun Series 100W LED High Mast Lights IP65 And IK10 Construction

1PC
MOQ
Opsun Series 100W LED High Mast Lights IP65 And IK10 Construction
Features Gallery Product Description Request A Quote
Features
Specifications
LED Chip: Lumileds 5050/Osram Chip
CRI: >70 (>80, >90 Available)
Efficiency: 160-170LM/W
CCT: 5000K (3000K, 4000K, 5700K Available)
BEAM ANGLE: 15° / 30° / 60° / 90° / 85°x135°/ 70°x140° / 60°x130°
POWER FACTOR (Typ): ≥0.97
Material: Aluminium, Hot-dip Galvanised Iron, PC
Color: Black(White)
LED Driver: MEANWELL & Inventronics Driver
Input Voltage: 100-227V/AC, 50-60Hz
IK Grade: IK10
IP Rating: IP65
Surge Protection: 10KV/20KV Optional
Dimming Options: 0-10v Dimming, DALI
Warranty: 5 Years
Highlight:

100W LED High Mast Lights

,

IP65 LED High Mast Lights

,

IK10 LED High Mast Lighting

Basic Infomation
Place of Origin: China
Brand Name: LUXSUN
Certification: CE ENEC CB SAA
Payment & Shipping Terms
Packaging Details: 790*223*600mm
Delivery Time: 15-20days
Payment Terms: T/T, L/C
Supply Ability: 5000PCS/Month
Product Description

Opsun Series 100w LED Floodlight Stadium Lights, LED High Mast Lighting



Overview

OpSun makes full use of the modular design and air convection design heat dissipation principle. We separate the power driver and the LED components in a separate chamber. Quickly dissipate heat to ensure maximum lamp life. OpSun is a very mature and stable outdoor lighting fixture, which is widely used in football fields, docks, steel mills, industrial plants, ships and more lighting fields.



The 100w LED floodlights provide bright and even illumination with a color temperature of 5000K, which is ideal for outdoor sports applications. The lights are also highly energy-efficient, using up to 80% less energy than traditional halogen or metal halide lights.

Other features of the Opsun Series 100w LED Floodlight Stadium Lights include a high CRI (color rendering index) of 80+, which ensures that colors are accurately represented, and a wide beam angle of 120 degrees, which provides excellent coverage and eliminates dark spots.

Main Features
• Ultra efficient system efficacy of up to 160-170lm/W
• High quality Lumileds LED chips and Mean Well Driver
• Multiple beam angles available
• Tough IP65 and IK10 construction
• Suitable for coastal areas (with optional 304/316 stainless steel bracket)
• Epoxy-Polyester anti-corrosion coating



Easy installation: The lights are easy to install, with a simple mounting bracket that allows for quick and easy installation on poles or walls.

Dimmable: The lights are dimmable, allowing for greater control over the lighting levels and energy consumption.

Power consumption: 100w. Provides adequate illumination for outdoor applications like parking lots, walkways, entryways or sports fields/stadiums. Bright enough for most medium-sized area lighting needs without excess power draw or costs.



Opsun Series 100W LED High Mast Lights IP65 And IK10 Construction 0

Opsun Series 100W LED High Mast Lights IP65 And IK10 Construction 1




Product Parameter

Opsun Series 100W LED High Mast Lights IP65 And IK10 Construction 2





Opsun Series 100W LED High Mast Lights IP65 And IK10 Construction 3
