Aluminium Outdoor High Mast Lamp , Waterproof LED Floodlight Fixtures

1PC
MOQ
Aluminium Outdoor High Mast Lamp , Waterproof LED Floodlight Fixtures
Features Gallery Product Description Request A Quote
Features
Specifications
LED Chip: Lumileds 5050/Osram Chip
CRI: >70 (>80, >90 Available)
Efficiency: 160-170LM/W
CCT: 5000K (3000K, 4000K, 5700K Available)
BEAM ANGLE: 30° / 60° / 90° /P45°
POWER FACTOR (Typ): ≥0.97
Material: Aluminium, Hot-dip Galvanised Iron, PC
Color: Black (White)
LED Driver: MEANWELL & Inventronics Driver
Input Voltage: 100-227V/AC, 50-60Hz
IK Grade: IK09
IP Rating: IP67
Surge Protection: 10KV/20KV Optional
Dimming Options: 0-10v Dimming, DALI
Warranty: 5 Years
Highlight:

Aluminium High Mast Lamp

,

Outdoor High Mast Lamp

,

Waterproof LED Floodlight Fixtures

Basic Infomation
Place of Origin: China
Brand Name: LUXSUN
Certification: CE ROHS CB SAA
Model Number: LUX-FLS-50/70/100
Payment & Shipping Terms
Packaging Details: 440*315*325mm
Delivery Time: 15-20days
Payment Terms: T/T, L/C
Supply Ability: 10000PCS/Month
Product Description

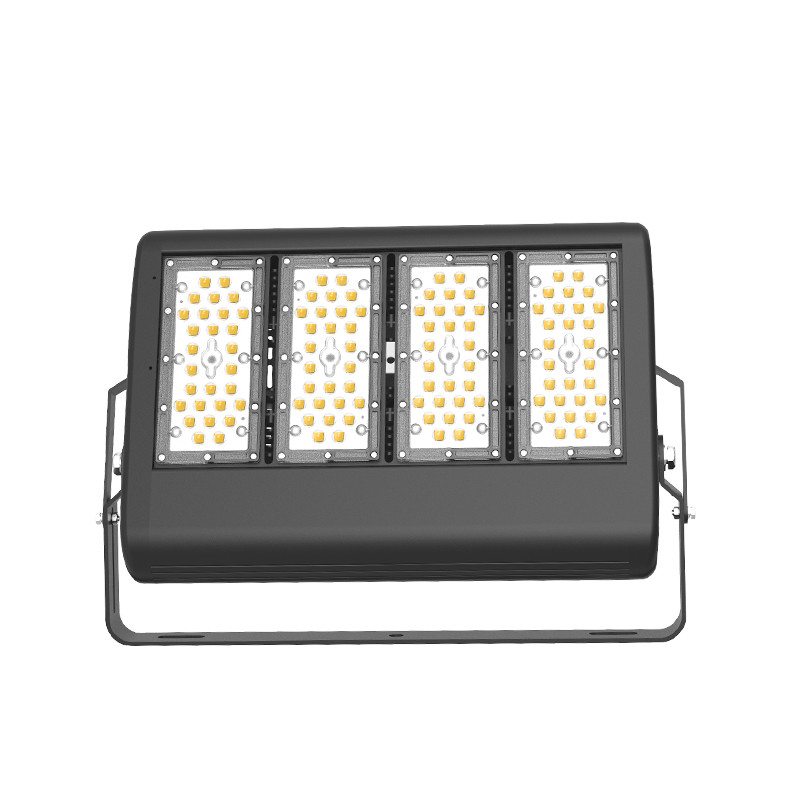

Opsun Series 100w LED Floodlight Stadium Lights, LED High Mast Lighting



Overview

OpSun makes full use of the modular design and air convection design heat dissipation principle. We separate the power driver and the LED components in a separate chamber. Quickly dissipate heat to ensure maximum lamp life. OpSun is a very mature and stable outdoor lighting fixture, which is widely used in football fields, docks, steel mills, industrial plants, ships and more lighting fields.



High-quality LED chips: The lights use high-quality LED chips that provide bright and efficient illumination, with a color temperature of 5000K.

Energy-efficient: The lights are highly energy-efficient, using up to 80% less energy than traditional halogen or metal halide lights.

Durable design: The lights are designed to withstand harsh outdoor environments, with a rugged and durable construction that is rated for use in wet locations.

Main Features
• Ultra efficient system efficacy of up to 160-170lm/W
• High quality Lumileds LED chips and Mean Well Driver
• Multiple beam angles available
• Tough IP65 and IK10 construction
• Suitable for coastal areas (with optional 304/316 stainless steel bracket)
• Epoxy-Polyester anti-corrosion coating



Aluminium Outdoor High Mast Lamp , Waterproof LED Floodlight Fixtures 0

Aluminium Outdoor High Mast Lamp , Waterproof LED Floodlight Fixtures 1




Product Parameter

Aluminium Outdoor High Mast Lamp , Waterproof LED Floodlight Fixtures 2





Aluminium Outdoor High Mast Lamp , Waterproof LED Floodlight Fixtures 3



Why Choose Us

why choose us-1

1. We use Dialux software to simulate the luminous effect, so as to make sure our proposals meet clients' requirements.

2. Our PMC department follows the production and we can report to you at any time about the production by photos and videos.

why choose us-2

3. We have IQC, IPQC, and OQC during the production, guarantee the products.

4. We have a large capacity and quickly finish the cargos in a short time with our experienced production team.


E40 E39 E27 25w-120w-detail-19

SERVICE
Best Energy Solutions
In 9 years, we have been great succeed and achievements. In that time, we have been awarded morethan 10 patents, and our products have passed UL, DLC, FCC, SAA, CE, ENEC, CB and RoHScertifications. Plus IP67, IP65, IK10, LM79, TM-21 and salt spray test.
Global Expertise
A perfect blend of global experience andexpertise to further our focus on technology.


OEM/ODM
Original Design Manufacturing
ODM (Original Design Manufacturer) is also referred to as private labeling or white label products. In this case, the manufacturer has an existing product design and the customer may make slight changes to sell it under their own brand name. Some examples of changes include branding, colors, or packaging.

Original Equipment Manufacturer
An OEM (Original Equipment Manufacturer) builds a customer’s product that is fully designed by that customer and then contracted out to produce. The Apple iPhone, for example, was invented and designed by Apple, and then contracted to Foxconn to build. With this, the iPhone has a much higher level of product differentiation because the design is only available to Apple and its contracted manufacturer.

The main advantage of an OEM is that the customer retains total creative control over the design. When using an OEM, there will also be little to no intellectual property restrictions that may prevent switching to a different manufacturer in the future, if needed.

Another benefit of using an OEM vs ODM is the flexibility in the product design. OEMs can build products to any specification while ODM products are restricted to a predetermined design.
