10KV/20KV Street High Mast Light , Stadium LED High Mast Flood Lights

1PC
MOQ
10KV/20KV Street High Mast Light , Stadium LED High Mast Flood Lights
Features Gallery Product Description Request A Quote
Features
Specifications
LED Chip: Lumileds 5050/Osram Chip
CRI: >70 (>80, >90 Available)
Efficiency: 160-170LM/W
CCT: 5000K (3000K, 4000K, 5700K Available)
BEAM ANGLE: 30° / 60° / 90° /P45°
POWER FACTOR (Typ): ≥0.97
Material: Aluminium, Hot-dip Galvanised Iron, PC
Color: Black (White)
LED Driver: MEANWELL & Inventronics Driver
Input Voltage: 100-227V/AC, 50-60Hz
IK Grade: IK09
IP Rating: IP67
Surge Protection: 10KV/20KV Optional
Dimming Options: 0-10v Dimming, DALI
Warranty: 5 Years
Highlight:

10KV Street High Mast Light

,

20KV Street High Mast Light

,

Stadium LED High Mast Flood Lights

Basic Infomation
Place of Origin: China
Brand Name: LUXSUN
Certification: CE ROHS CB SAA
Model Number: LUX-FLS-50/70/100
Payment & Shipping Terms
Packaging Details: 440*315*325mm
Delivery Time: 15-20days
Payment Terms: T/T, L/C
Supply Ability: 10000PCS/Month
Product Description

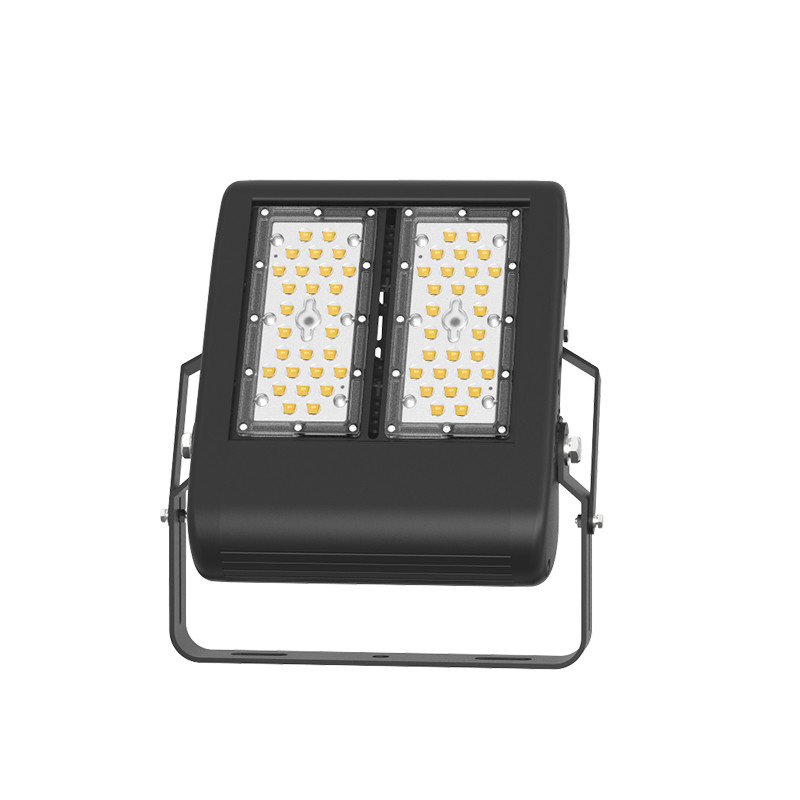

Opsun Series 100w LED Floodlight Stadium Lights, LED High Mast Lighting



Overview

OpSun makes full use of the modular design and air convection design heat dissipation principle. We separate the power driver and the LED components in a separate chamber. Quickly dissipate heat to ensure maximum lamp life. OpSun is a very mature and stable outdoor lighting fixture, which is widely used in football fields, docks, steel mills, industrial plants, ships and more lighting fields.

The Series 100w LED Floodlight Stadium Lights feature a rugged and durable design that is built to withstand harsh outdoor environments. The lights are rated for use in wet locations and are constructed with heavy-duty materials to ensure long-lasting performance.



Main Features
• Ultra efficient system efficacy of up to 160-170lm/W
• High quality Lumileds LED chips and Mean Well Driver
• Multiple beam angles available
• Tough IP65 and IK10 construction
• Suitable for coastal areas (with optional 304/316 stainless steel bracket)
• Epoxy-Polyester anti-corrosion coating



Energy efficiency. Uses a high-quality LED chip to produce 140 lumens of bright light per watt, significantly more efficient than incandescent or metal halide floodlights. Can reduce energy usage by up to 90% while maintaining or improving brightness levels for optimal performance at lower operating expenses. Helps reduce environmental impact and lower utility bills.

• Lifespan: 50,000 hours. The solid state LED chip in these floodlights is rated to provide 50,000 hours of continuous operation, up to 22 times the lifespan of traditional alternatives. Eliminates frequent replacement needs and associated downtime, costs, waste and inconvenience. Minimizes total cost of ownership over the lifetime of the product.



10KV/20KV Street High Mast Light , Stadium LED High Mast Flood Lights 0

10KV/20KV Street High Mast Light , Stadium LED High Mast Flood Lights 1




Product Parameter

10KV/20KV Street High Mast Light , Stadium LED High Mast Flood Lights 2





10KV/20KV Street High Mast Light , Stadium LED High Mast Flood Lights 3



Why Choose Us

why choose us-1

1. We use Dialux software to simulate the luminous effect, so as to make sure our proposals meet clients' requirements.

2. Our PMC department follows the production and we can report to you at any time about the production by photos and videos.

why choose us-2

3. We have IQC, IPQC, and OQC during the production, guarantee the products.

4. We have a large capacity and quickly finish the cargos in a short time with our experienced production team.


E40 E39 E27 25w-120w-detail-19

COMPANY PROFILE
9 years experience on LED High Power Lighting. We concentrate on the Specialty, Speed, Efficiency, Cost & Quality. LUXSUN is technology company which is specialized in researching, developing, producing and selling the series of LED flood lights. We also providing professional lighting solutions and other integrated services. LUXSUN insists on the philosophy “quality first” to work with its customers, our clients covers Europe, America, Asia, Australia, South Africa and other countries, has occupied a leading position in the stadium lighting market and won the trust of clients.

SERVICE
Best Energy Solutions
In 9 years, we have been great succeed and achievements. In that time, we have been awarded morethan 10 patents, and our products have passed UL, DLC, FCC, SAA, CE, ENEC, CB and RoHScertifications. Plus IP67, IP65, IK10, LM79, TM-21 and salt spray test.
Global Expertise
A perfect blend of global experience andexpertise to further our focus on technology.
