| Part number | LUX-LHB-50H | LUX-LHB-100H | LUX-LHB-150H | LUX-LHB-200H | LUX-LHB-300H |
| Power | 50W | 100W | 150W | 200W | 300W |
| Voltage | 100-277V | ||||
| Angle | 60°/90°/120° | ||||
| Lumen | 7,500lm | 15,000lm | 22,500lm | 30,000lm | 45,000lm |
| Efficiency | 150lm/W | ||||
| CCT | 3000K/4000K/5000K/6000K/6500K | ||||
| CRI | 70/80/90 | ||||
| IP | 65 | ||||
| IK | 10 | ||||
| Operation temperature | -30º to +45ºC | ||||
| Dimmable Options | DALI, 1-10V | ||||
| Warranty | 5 Years | ||||
| Life span | 50,000hrs | ||||
High Performance Lighting:
High output Lumileds LED Chips and Mean Well control gear ensures you will save on both energy and maintenance costs while meeting the
highest performance standards.
Quick & Easy Installation:

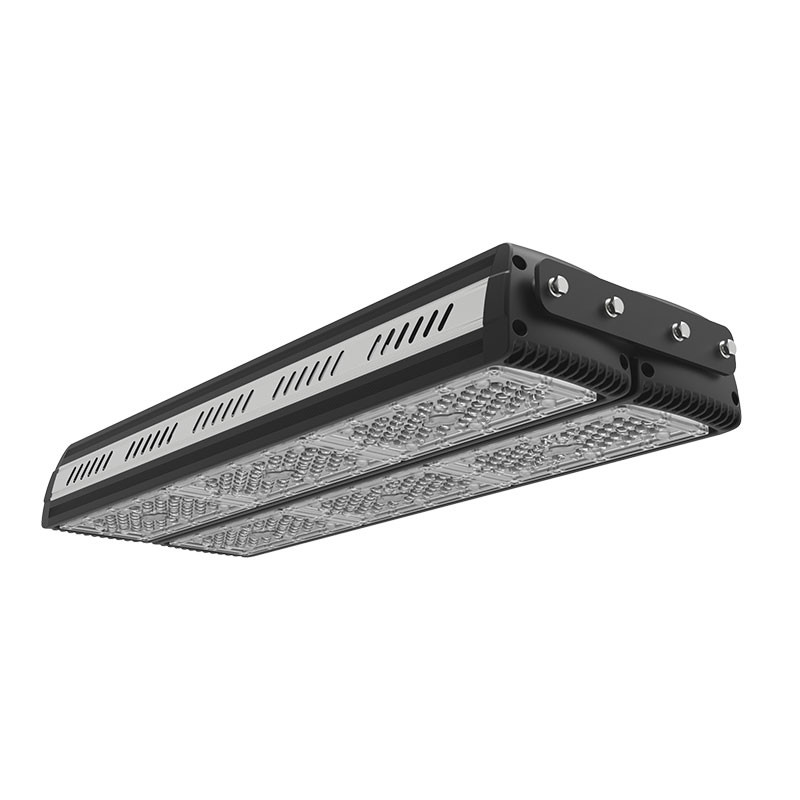

Engineered from corrosion resistant aluminium alloy, the low profile, perfectly balanced luminaire is incredibly lightweight and takes just minutes to instal by a
single person. The unit can be held in one hand, whilst attaching the unit to the single source hanging fixture, with the other.
Controlled Lighting:
For light only when required, there are a range of easy fit, control options. Choose from PIR, microwave, daylight, DALI-2 and wireless options. Simply plug
the unit in the centre of the light fixture and you are good to go in seconds, with no complex rewiring, or counterbalances required. For large installations,
with multiple luminaires, the remote control features a bulk upload feature. This allows multiple lights to be programmed in one go. And, if for any reason your
floor layout changes, our sensors are interchangeable, making it easy to re-apply your lighting control.
LEDs, extending their long lifespan.
Built to last:
A Linear High Bay is a long term 10-to-20-year investment so the Area Bay has not only been engineered to last but also designed to quickly accommodate upgrades and replacement parts when required.
With a 50,000 LED lifetime, and a 5 years warranty, and low running costs, you can rest assured that the Area Bay is a smart lighting investment.
1. We use Dialux software to simulate the luminous effect, so as to make sure our proposals meet clients' requirements.
2. Our PMC department follows the production and we can report to you at any time about the production by photos and videos.
3. We have IQC, IPQC, and OQC during the production, guarantee the products.
4. We have a large capacity and quickly finish the cargos in a short time with our experienced production team.
OEM/ODM
Original Design Manufacturing
ODM (Original Design Manufacturer) is also referred to as private labeling or white label products. In this case, the manufacturer has an existing product design and the customer may make slight changes to sell it under their own brand name. Some examples of changes include branding, colors, or packaging.
Original Equipment Manufacturer
An OEM (Original Equipment Manufacturer) builds a customer’s product that is fully designed by that customer and then contracted out to produce. The Apple iPhone, for example, was invented and designed by Apple, and then contracted to Foxconn to build. With this, the iPhone has a much higher level of product differentiation because the design is only available to Apple and its contracted manufacturer.
The main advantage of an OEM is that the customer retains total creative control over the design. When using an OEM, there will also be little to no intellectual property restrictions that may prevent switching to a different manufacturer in the future, if needed.
Another benefit of using an OEM vs ODM is the flexibility in the product design. OEMs can build products to any specification while ODM products are restricted to a predetermined design.
