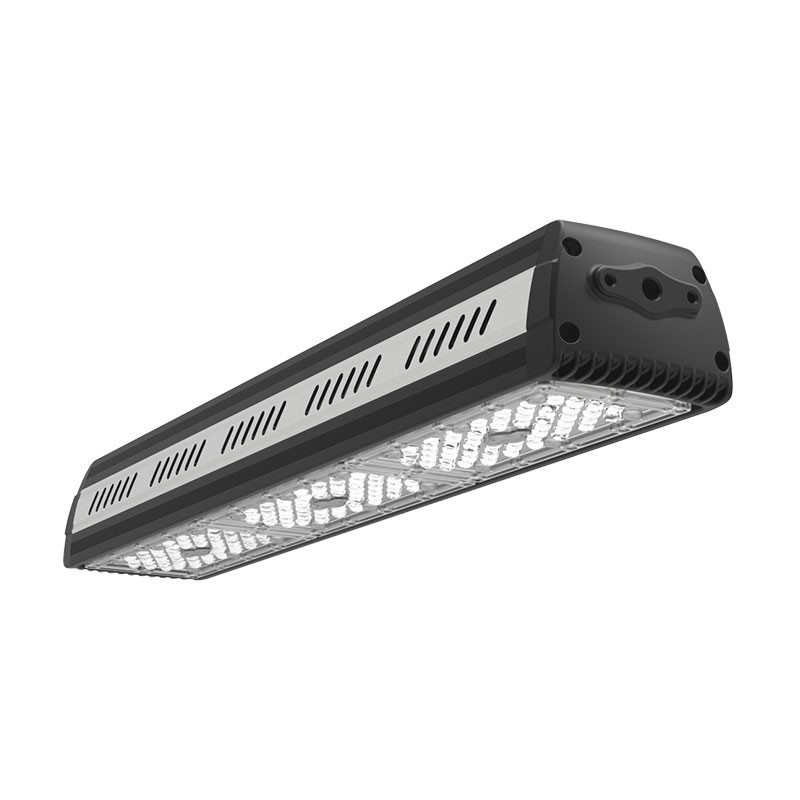

The Opmill series IP65 100W-300W LED Linear Highbay lighting is a high-quality lighting solution suitable for a variety of industrial and commercial applications.
The Opmill series is designed to provide bright and even illumination with energy-efficient LED technology, reducing electricity costs while providing ample lighting for large indoor spaces. The IP65 rating makes it water-resistant and suitable for use in harsh outdoor environments.
The lighting fixture is available in a range of wattage options, including 100W, 150W, 200W, 240W, and 300W, to suit a variety of industrial and commercial applications. The adjustable bracket allows for flexible positioning, making it easy to install in a variety of locations.
Optional dimmable options are available for increased energy savings and customization of lighting levels. Optional motion sensors and emergency backup options are also available for increased safety and energy savings.
| Part number | LUX-LHB-50H | LUX-LHB-100H | LUX-LHB-150H | LUX-LHB-200H | LUX-LHB-300H |
| Power | 50W | 100W | 150W | 200W | 300W |
| Voltage | 100-277V | ||||
| Angle | 60°/90°/120° | ||||
| Lumen | 7,500lm | 15,000lm | 22,500lm | 30,000lm | 45,000lm |
| Efficiency | 150lm/W | ||||
| CCT | 3000K/4000K/5000K/6000K/6500K | ||||
| CRI | 70/80/90 | ||||
| IP | 65 | ||||
| IK | 10 | ||||
| Operation temperature | -30º to +45ºC | ||||
| Dimmable Options | DALI, 1-10V | ||||
| Warranty | 5 Years | ||||
| Life span | 50,000hrs | ||||
High Performance Lighting:
High output Lumileds LED Chips and Mean Well control gear ensures you will save on both energy and maintenance costs while meeting the
highest performance standards.
Quick & Easy Installation:
Engineered from corrosion resistant aluminium alloy, the low profile, perfectly balanced luminaire is incredibly lightweight and takes just minutes to instal by a
single person. The unit can be held in one hand, whilst attaching the unit to the single source hanging fixture, with the other.
Controlled Lighting:
For light only when required, there are a range of easy fit, control options. Choose from PIR, microwave, daylight, DALI-2 and wireless options. Simply plug
the unit in the centre of the light fixture and you are good to go in seconds, with no complex rewiring, or counterbalances required. For large installations,
with multiple luminaires, the remote control features a bulk upload feature. This allows multiple lights to be programmed in one go. And, if for any reason your
floor layout changes, our sensors are interchangeable, making it easy to re-apply your lighting control.
LEDs, extending their long lifespan.
Built to last:
A Linear High Bay is a long term 10-to-20-year investment so the Area Bay has not only been engineered to last but also designed to quickly accommodate upgrades and replacement parts when required.
With a 50,000 LED lifetime, and a 5 years warranty, and low running costs, you can rest assured that the Area Bay is a smart lighting investment.
