Dimmable 5000K DMX Flood Light PC Stainless Steel 304 Material

1PC
MOQ
Dimmable 5000K DMX Flood Light PC Stainless Steel 304 Material
Features Gallery Product Description Request A Quote
Features
Specifications
LED Chip: Lumileds/Osram Chip
CRI: >70 (>80, >90 Available)
Efficiency: 135-150lm/W
CCT: 5000K (3000K, 4000K, 5700K Available)
BEAM ANGLE: 12°, 16°, 30°, 60°, Asy 25*130°,60*130°,40*130°
POWER FACTOR (Typ): ≥0.97
Material: Aluminium, Stainless Steel 304, PC
Color: Black/Grey
LED Driver: Inventronics Driver
Input Voltage: 100-227V/AC, 50-60Hz
IK Grade: IK09
IP Rating: IP66
Surge Protection: 10kV
Warranty: 5 Years
Highlight:

Dimmable DMX Flood Light

,

5000K DMX Flood Light

,

Stainless Steel Dimmable Flood Light

Basic Infomation
Place of Origin: China
Brand Name: LUXSUN
Certification: CE ENEC CB SAA
Model Number: LUX-SP2-1200/1800
Payment & Shipping Terms
Packaging Details: 889*215*860mm/919*215*1080mm
Delivery Time: 15-20days
Payment Terms: T/T, L/C
Supply Ability: 5000PCS/Month
Product Description

1200W 1800W OPSPORT DMX & DALI 2.0 SERIES LED SPORT LIGHTING, LED stadium lighting

Overview

OpSport DMX&DALI Dimmable Sports Field Light

OpSport DMX The 1200W 1800W OpSPORT DMX & DALI 2.0 Series LED Sport Lighting is a high-output LED lighting solution designed for use in sports stadiums and arenas. The DMX (Digital Multiplex) and DALI (Digital Addressable Lighting Interface) 2.0 protocols allow for remote control of the lighting fixtures, enabling precise control over the lighting output and the ability to synchronize the lighting with other fixtures or events.

The wattage range of 1200W to 1800W indicates the power consumption of the sport lighting fixture, with higher wattage resulting in brighter illumination. LED technology is used to provide energy-efficient lighting with a longer lifespan than traditional lighting sources.

The OpSPORT series is designed to be IP65 rated, which means that the fixtures are protected against dust and water ingress, making them suitable for use in various weather conditions. The series also includes features such as adjustable brackets and a variety of beam angles, providing flexibility in installation and lighting design.

Overall, the 1200W 1800W OpSPORT DMX & DALI 2.0 Series LED Sport Lighting is a reliable and efficient lighting solution for sports stadiums and arenas that require high-quality and controllable illumination. The use of LED technology and advanced lighting control protocols such as DMX and DALI 2.0 ensures energy efficiency, precise control, and flexibility in lighting design.




Main Features

• Ultra-high system efficiency of up to 150lm/W
• High quality Lumileds LED Chip and Inventronics Driver
• Long >10,2000 hours lifespan to L70
• Professionally Designed True Asymmetric Flat Optics
• Tough IP66 and IK09 construction
• Suitable for coastal areas (with optional 316 stainless steel bracket)
• High quality AkzoNobel anti-corrosion Powder-coating

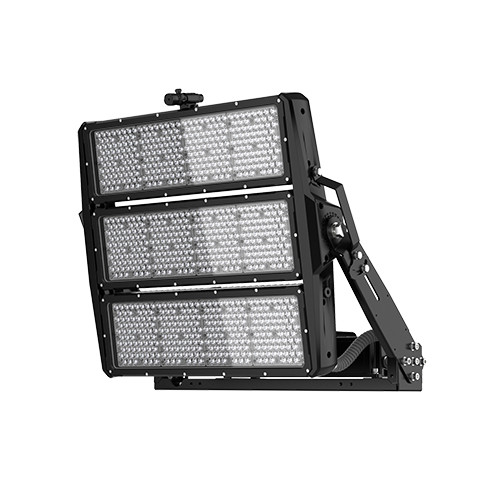

Dimmable 5000K DMX Flood Light PC Stainless Steel 304 Material 0

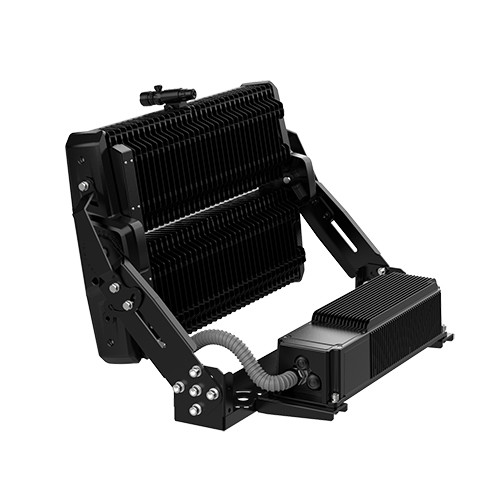

Dimmable 5000K DMX Flood Light PC Stainless Steel 304 Material 1

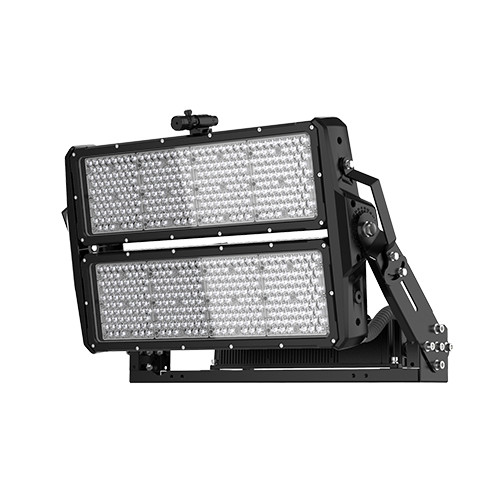

Dimmable 5000K DMX Flood Light PC Stainless Steel 304 Material 2



Product Parameter

Dimmable 5000K DMX Flood Light PC Stainless Steel 304 Material 3




More Advantages

1.Wide selection of optics (Asymmetric: 25x130°/40x130° /60x130°/ & Symmetric:12°/16° /30° /60°)
High Uniformity and Eav [lx], 0° installation low windage

2.Spill control shields/specially designed high efficiency lens as standard.
Easier compliance to AS4282, low spill light<10lx, <12500dc

3.304 Stainless steel bracket and passivate treatment on the die-casting body, AkzoNobel Anti-corrosion powder coating, 10 years won't drop off
Can be used for seaside Environment

4.Drivers can be positioned at the base of the pole
Ease of maintenance

5.Tempered glass on the lens
Protect the lens, 10 years won't get yellow.

6.Fully dimmable with both wired and wireless protocols
Reduced operating costs and ability to choose what parts of the fields you illuminate

7.Cables concealed and protected by 304 SS prectection tube
No more issues with bird attack and UV damage

8. With wiring box, easy installation for electricians.
Reduced installation costs

9. Market-leading weight and sail area.
Easy retrofit of old style luminaires, and reduced install costs.

10.Patented heat sink design
Better heat dissipation in Australia’s harsh environment.

11.Full replacement warranty
Confidence that you are working with a company who stands behind their product

12.CE ROHS, ENEC, CB, SAA Certificates for all powers
