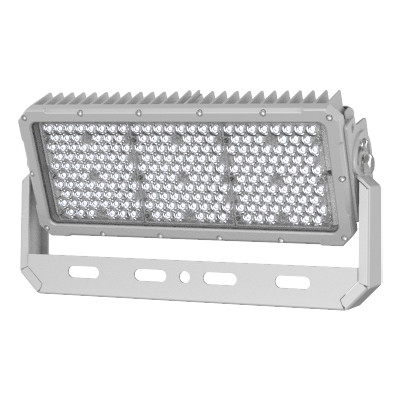

Opsport is a highly efficient floodlight for sports and large area lighting. Available with a wide range of lumen outputs from47,340lm –299,880lm, multiple distribution types and accessories enable efficient and accurate designs achieving the highest levels of uniformity. Every aspect of this product is highly engineered and built to last in the harshest of environments.
With an excellent optical design range starting at 12 degree and including the asymmetric options. The Opsport 1440 watt Sports Flood Light has a very low UGR with no flicker, which allows for perfect slow-motion imagery within the HDTV live broadcasting industry. The Opsport Range also comes with a polyester powdered coated anti-corrosion layer for extra protection. The cooling technology for our Opsport range has been developed together with the engineers. This also has a higher input voltage range using the INVENTRONICS Driver which also allows us to offer the dimming options. If you're unsure what fitting you need then we offer a FREE Dialux lighting design ensuring you order the right products for your needs. If we supply you with a lighting design for your own installation, this will be done so on the understanding that you understand and agree with the lighting design presented to you.
| Wattage | 320W/480W /550W /600W /800W /960W/1100W 1200W/1360W/1440W/1650W/1800W /2040W |
| Efficacy | Up to 151LM/W |
| Lumens | 297,135LM |
| Angle | 12°/16°/30° /60° /25x130° /40x130° 60x130°/NB40 |
| Driver | Inventronics EUD ,ESD ,EBM ,ESM |
| Function | 0-10V ,DALI, DMX control |
| Certificate | CE,CB ,SAA,ETL ,ENEC ,TM21,IK09 ,IP66 LM79, 1000 hours salt spraying test |
● Up to 150lm/W system efficacy
● Lumileds LED chips and Inventronics Driver package
● Separate driver box for heat dissipation, remote driver and driver on fitting installation optional
● 3000K, 4000K, 5000K and 5700K CCT
● 320W-2040W, 47,040lm–299,880lm Lumen Package
● 10kv/20kv surge protection optional.
● 1-10V/DMX, DALI dimming available,
● IP66 and IK09
● Full range of accessories available inc. laser scope for aiming and anti-glare hood shield.
