Overview

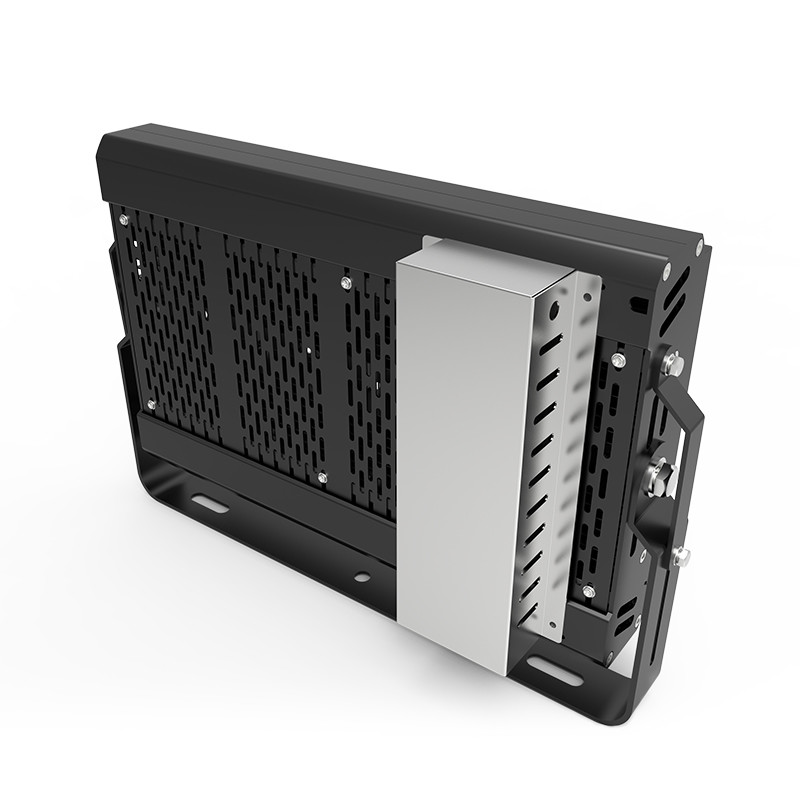

OpBox anti-corrosion LED outdoor flood light fixtures. These multi-scene and stable lighting fixtures are suitable for various outdoor lighting applications, including sports.
The LED outdoor flood light fixtures feature a high-quality aluminum housing that is anti-corrosion and weather-resistant, ensuring long-lasting durability and performance in harsh outdoor conditions.
The LED outdoor flood light fixtures have a luminous flux of 12,000 lumens, providing ample brightness for outdoor activities, including sports. They have a beam angle of 120 degrees, providing a wide and uniform lighting effect, ideal for outdoor sports venues.
These LED outdoor flood light fixtures have a lifespan of up to 50,000 hours, making them a reliable and long-lasting lighting solution for outdoor use. They are easy to install and maintain, thanks to their rugged construction and adjustable bracket for precise aiming and beam control.
Overall, these anti-corrosion LED outdoor flood light fixtures are a practical and reliable lighting solution for various outdoor lighting requirements, including sports. Their anti-corrosion and weather-resistant construction, high luminous flux, wide beam angle, and long lifespan make them an excellent choice for different outdoor lighting needs.
| Part number | LUX-FLB-80/100 | LUX-FLB-150 | LUX-FLB-200/240 | LUX-FLB-250 |
| Power | 80W/100W | 150W | 200W/240W | 250W |
| Voltage | 100-277V | |||
| Angle | 30°/60°/90°/120°/60°x135°/85°x135° | |||
| Lumen | 13,600lm/17,000lm | 25,500lm | 34,000lm/40,800lm | 42,500lm/46,750lm |
| Efficiency | 170lm/W | |||
| CCT | 3000K/4000K/5000K/6000K/6500K | |||
| CRI | 70/80/90 | |||
| IP | 65 | |||
| IK | 10 | |||
| Operation temperature | -30º to +45ºC | |||
| Dimmable Options | DALI, 1-10V | |||
| Warranty | 5 Years | |||
| Life span | 50,000hrs | |||
High Performance Lighting:
High output Lumileds LED Chips and Mean Well control gear ensures you will save on both energy and maintenance costs while meeting the
highest performance standards.
Quick & Easy Installation:
Engineered from corrosion resistant aluminium alloy, the low profile, perfectly balanced luminaire is incredibly lightweight and takes just minutes to instal by a
single person. The unit can be held in one hand, whilst attaching the unit to the single source hanging fixture, with the other.
Controlled Lighting:
For light only when required, there are a range of easy fit, control options. Choose from PIR, microwave, daylight, DALI-2 and wireless options. Simply plug
the unit in the centre of the light fixture and you are good to go in seconds, with no complex rewiring, or counterbalances required. For large installations,
with multiple luminaires, the remote control features a bulk upload feature. This allows multiple lights to be programmed in one go. And, if for any reason your
floor layout changes, our sensors are interchangeable, making it easy to re-apply your lighting control.
LEDs, extending their long lifespan.
Built to last:
A Linear High Bay is a long term 10-to-20-year investment so the Area Bay has not only been engineered to last but also designed to quickly accommodate upgrades and replacement parts when required.
With a 50,000 LED lifetime, and a 5 years warranty, and low running costs, you can rest assured that the Area Bay is a smart lighting investment.
1. We use Dialux software to simulate the luminous effect, so as to make sure our proposals meet clients' requirements.
2. Our PMC department follows the production and we can report to you at any time about the production by photos and videos.
3. We have IQC, IPQC, and OQC during the production, guarantee the products.
4. We have a large capacity and quickly finish the cargos in a short time with our experienced production team.
