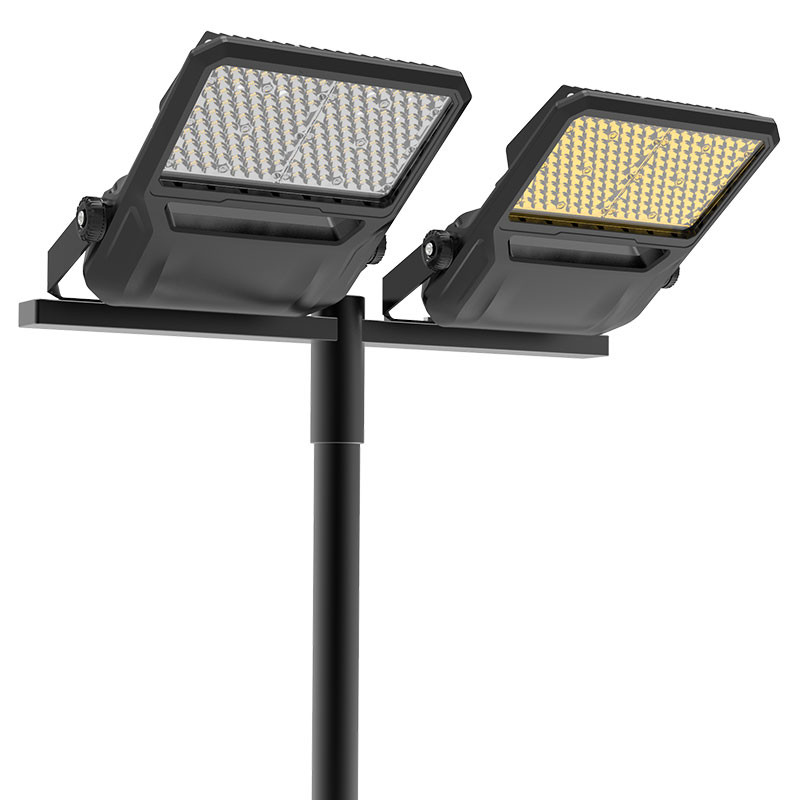

Dimmable IK09 Tennis Court Floodlights Multi Scene AC 100V-227V

1PC
MOQ
Dimmable IK09 Tennis Court Floodlights Multi Scene AC 100V-227V
Features Gallery Product Description Request A Quote
Features
Specifications
LED Chip: Lumileds 3030/5050/2835
CRI: >70 (>80, >90 Available)
Efficiency: 130LM/W-170LM/W
CCT: 5000K (3000K, 4000K, 5700K Available)
BEAM ANGLE: 30° / 60° / 90° /P45°
POWER FACTOR (Typ): ≥0.97
Material: Aluminium, Hot-dip Galvanised Iron, PC
Color: Black (White)
LED Driver: MEANWELL & Inventronics Driver
Input Voltage: 100-227V/AC, 50-60Hz
IK Grade: IK09
IP Rating: IP67
Surge Protection: 10KV/20KV Optional
Dimming Options: 0-10v Dimming, DALI
Warranty: 5 Years
Highlight:

Dimmable Tennis Court Floodlights

,

100V Tennis Court Floodlights

,

227V Dimmable Outdoor Flood Lights

Basic Infomation
Place of Origin: China
Brand Name: LUXSUN
Certification: CE ROHS CB SAA
Model Number: LUX-FLS-50/70/100
Payment & Shipping Terms
Packaging Details: 440*315*325mm
Delivery Time: 15-20days
Payment Terms: T/T, L/C
Supply Ability: 10000PCS/Month
Product Description

OpSky series 50W-100W LED Floodlight,outdoor flood light

Dimmable IK09 Tennis Court Floodlights Multi Scene AC 100V-227V 0

Overview

OPSKY, another masterpiece under the family design language, is a cost-effective outdoor lighting from 50W to 280W. OPSKY still uses the iconic family design language, and boldly adopts the back line shape.The smooth concave and slightly upward lines on both sides of the waistline make OPSKY more sporty.



The industry’s first hollow design power supply will generate a lot of heat during work, and the heat will continue to be transferred upwards. The hollow design is to isolate the heat source and make the junction temperature of the LED light source lower.
It is widely used in factories, billboards, highways, railways, tunnels, bridges, culverts, squares, stadiums, buildings and other scenes.

Main Features

  • LED floodlights in the 50 to 100 watt range are very bright, energy efficient outdoor lighting options. They can illuminate large areas for security and visibility. Key things to consider when choosing an LED floodlight include:
  • Power - Choose a wattage between 50 to 100 watts depending on how much light you need. 50-70W is suitable for most homes. 80-100W is best for commercial use or lighting up multi-story buildings.
  • Brightness - Measured in lumens, and range from 6,000 to 15,000 lumens or more. The higher the lumens, the brighter the light. For reference, an incandescent bulb produces 800-1500 lumens.
  • Color Temperature - Depends on what kind of light you want. 3000K is warm white, 4000K is neutral bright, and 5000K is cool daylight. Higher temperature means a cooler, bluer tint.
  • Beam Angle - A wider beam angle like 90-120 degrees illuminates the largest area. A narrower 30-60 degree beam angle is best when you need to focus the light.
  • Housing - Choose an aluminum alloy housing for durability and weather resistance. Look for an IP65 rating for the most waterproof and dustproof option.
  • Mounting - Most come with an adjustable mounting bracket for wall or ground mounting. Some include ground stakes. Choose a mounting method that suits your location.
  • Long Lifespan - LED floodlights last 50,000 hours or more, which is 11-22 years based on 8 hours of use per day. So they are very low maintenance.
  • Energy Efficiency - Produce a bright light using only 50 to 100 watts of energy compared to the 400 to 1000 watts of a halogen floodlight. Can significantly lower your energy costs over incandescent or halogen alternatives.
Dimmable IK09 Tennis Court Floodlights Multi Scene AC 100V-227V 1




Product Parameter

Part No. LUX-FLS-50 LUX-FLS-75 LUX-FLS-100 LUX-FLS-150 LUX-FLS-180 LUX-FLS-240 LUX-FLS-280
Power 50W 75W 100W 150W 180W 240W 280W
Voltage AC100-277V
Angle 25°/30°/60°/90°/120°/80°x150°/P45°/40x130°/60x130°
Luminous Efficacy 130lm/W/ 140lm/W/170lm/W available (SMD 3030/2835/5050)
CCT 5000K (3000K, 4000K, 5700K, 6500K available)
CRI >70 (>80, >90 available)
Dim 0-10v/Dali optional
IP 67
Operating temperature -30 to +45
Smart control options Photocell/Motion sensor/LoraWAN
Warranty 5 years
Life span 50,000 hrs




Dimmable IK09 Tennis Court Floodlights Multi Scene AC 100V-227V 2



Dimmable IK09 Tennis Court Floodlights Multi Scene AC 100V-227V 3



COMPANY PROFILE


Luxsun specializes in the research, design and production of LED floodlight, sport fields & stadium
light, high mast light, smart LED street light and LED high bay light since2014. all of products are
patented and the factory has been certificated by ISO9001:2015 &ISO14001:2015.



In the past eight years, Luxsun has gain great success and achievements. we have been awarded
more than 30patents, and our products have passed UL, FCC,ENEC,CB,SASO,SAA,CE and ROHS
certification. Including TM-21,LM-79, IP66,IK09, salt spray testing. our mainly markets are
exported to Europe,New Zealand, Australia,South Africa,South America, Middle-East etc.
