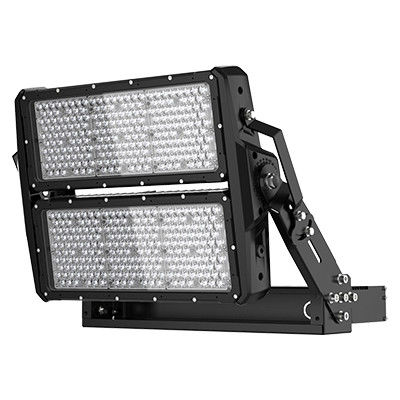

960W Football LED Stadium Light CCT 5000K 100-227V/AC Opsport LUX-SP-960

1PC
MOQ
960W Football LED Stadium Light CCT 5000K 100-227V/AC Opsport LUX-SP-960
Features Gallery Product Description Request A Quote
Features
Specifications
LED Chip: Lumileds/Osram Chip
CRI: >70 (>80, >90 Available)
Efficiency: 135-150lm/W
CCT: 5000K (3000K, 4000K, 5700K Available)
BEAM ANGLE: 12°, 16°, 30°, 60°, Asy 25*130°,60*130°,40*130°,NB40
POWER FACTOR (Typ): ≥0.97
Material: Aluminium, Stainless Steel 304, PC
Color: Black/Grey
LED Driver: Inventronics Driver
Input Voltage: 100-227V/AC, 50-60Hz
IK Grade: IK09
IP Rating: IP66
Surge Protection: 10kV
Dimming Options: 0-10v Dimming, DALI
Warranty: 5 Years
Highlight:

Football LED Stadium Light

,

5000K LED Stadium Light

,

227V Football Stadium Lights

Basic Infomation
Place of Origin: China
Brand Name: LUXSUN
Certification: CE ENEC CB SAA
Model Number: LUX-SP-960
Payment & Shipping Terms
Packaging Details: 745*215*860mm
Delivery Time: 15-20days
Payment Terms: T/T, L/C
Supply Ability: 5000PCS/Month
Product Description

960W Opsport Series LED Floodlight, football stadium lights, tennis court lighting - LUX-SP-960





Overview

Opsport is a highly efficient floodlight for sports and large area lighting. Available with a wide range of lumen outputs from 47,340lm –299,880lm, multiple distribution types and accessories enable efficient and accurate designs achieving the highest levels of uniformity. Every aspect of this product is highly engineered and built to last in the harshest of environments.



With an excellent optical design range starting at 12 degree and including the asymmetric options. The Opsport 960 watt Sports Flood Light has a very low UGR with no flicker, which allows for perfect slow-motion imagery within the HDTV live broadcasting industry. The Opsport Range also comes with a polyester powdered coated anti-corrosion layer for extra protection. The cooling technology for our Opsport range has been developed together with the engineers. This also has a higher input voltage range using the INVENTRONICS Driver which also allows us to offer the dimming options. If you're unsure what fitting you need then we offer a FREE Dialux lighting design ensuring you order the right products for your needs. If we supply you with a lighting design for your own installation, this will be done so on the understanding that you understand and agree with the lighting design presented to you.



Main Features

Two-module stadium flood light designed for outdoor sports venues.
Weatherproof and resistant to weathering and corrosion with high-quality aluminum alloy housing.
Up to 80 CRI rating for excellent visibility with accurate color reproduction.
Easy to install and maintain with an adjustable bracket for precise aiming and beam control.
600W rated power, producing 78,000 lumens.
Adjustable beam angle between 10 and 120 degrees for flexibility in coverage area and light direction.
Up to 50,000 hours lifespan, making it an energy-efficient and reliable choice for sports lighting applications.
Up to IP66 rating, making it dust-tight and protected against powerful water jets.
Ideal for sports lighting in outdoor venues.

960W Football LED Stadium Light CCT 5000K 100-227V/AC Opsport LUX-SP-960 0






More Advantages

1.Wide selection of optics (Asymmetric: 25x130°/40x130° /60x130°/ & Symmetric:12°/16° /30° /60°)
High Uniformity and Eav [lx], 0° installation low windage

2.Spill control shields/specially designed high efficiency lens as standard.
Easier compliance to AS4282, low spill light<10lx, <12500dc

3.304 Stainless steel bracket and passivate treatment on the die-casting body, AkzoNobel Anti-corrosion powder coating, 10 years won't drop off
Can be used for seaside Environment

4.Drivers can be positioned at the base of the pole
Ease of maintenance

5.Tempered glass on the lens
Protect the lens, 10 years won't get yellow.

6.Fully dimmable with both wired and wireless protocols
Reduced operating costs and ability to choose what parts of the fields you illuminate

7.Cables concealed and protected by 304 SS prectection tube
No more issues with bird attack and UV damage

8. With wiring box, easy installation for electricians.
Reduced installation costs

9. Market-leading weight and sail area.
Easy retrofit of old style luminaires, and reduced install costs.

10.Patented heat sink design
Better heat dissipation in Australia’s harsh environment.

11.Full replacement warranty
Confidence that you are working with a company who stands behind their product

12.CE ROHS, ENEC, CB, SAA Certificates for all powers

Production

960W Football LED Stadium Light CCT 5000K 100-227V/AC Opsport LUX-SP-960 1960W Football LED Stadium Light CCT 5000K 100-227V/AC Opsport LUX-SP-960 2960W Football LED Stadium Light CCT 5000K 100-227V/AC Opsport LUX-SP-960 3


Why Choose Us

why choose us-1

1. We use Dialux software to simulate the luminous effect, so as to make sure our proposals meet clients' requirements.

2. Our PMC department follows the production and we can report to you at any time about the production by photos and videos.

why choose us-2

3. We have IQC, IPQC, and OQC during the production, guarantee the products.

4. We have a large capacity and quickly finish the cargos in a short time with our experienced production team.
